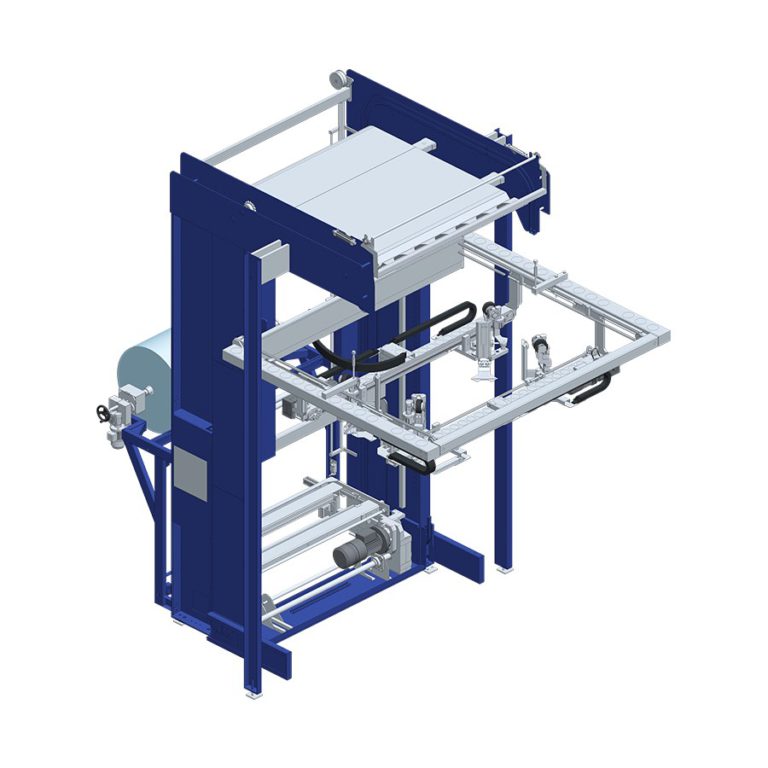

| The PIS44 stretch hooding machine is an automatic, single work station for packaging operations using stretch film. |
| The machine uses coils of tubular elastic film with side gussets to package differently sized packs. |
| IS44 has been designed for a high performance (up to 100 packs/h) while keeping a high-quality of the packaged product. |
| With its innovative coil holder it is possible to prepare the coil which will go into operation without having to stop the machine. |
| For maintenance purposes, the operator can completely and easily access machine components, as they are either at ground level or can be reached from a standing or seated ground position. |
| Advantages |
| High performance: up to 100 packs/h |
| No down time during coil replacement |
| Energy saving: the stretch film used for the packaging does not need to be heated. |
| Stability of the pack: the packaging with stretch film is very tight, so that even unstable packages remain well compacted. |
| The water-proof and dust-proof hood protects the products against adverse weather conditions and thefts. |
| Environment friendly: less film consumption = less waste. |
| Specifications |
| Film Type: polyethylene stretch |
| Thickness: 50 ÷ 180 micron |
| Max Coils Diameter: 700 mm (Optional 1000 mm) |
| Max Coils Weight: 400 kg |
| Minimum Conveyors Height: 500 mm |
| Electrical Power Supply: 400 V – 50 Hz threephase + neutral |
| Installed Power: 9 kW |
| Air Pressure: 5,5 – 6,5 bar – 60 Nl / cycle |
