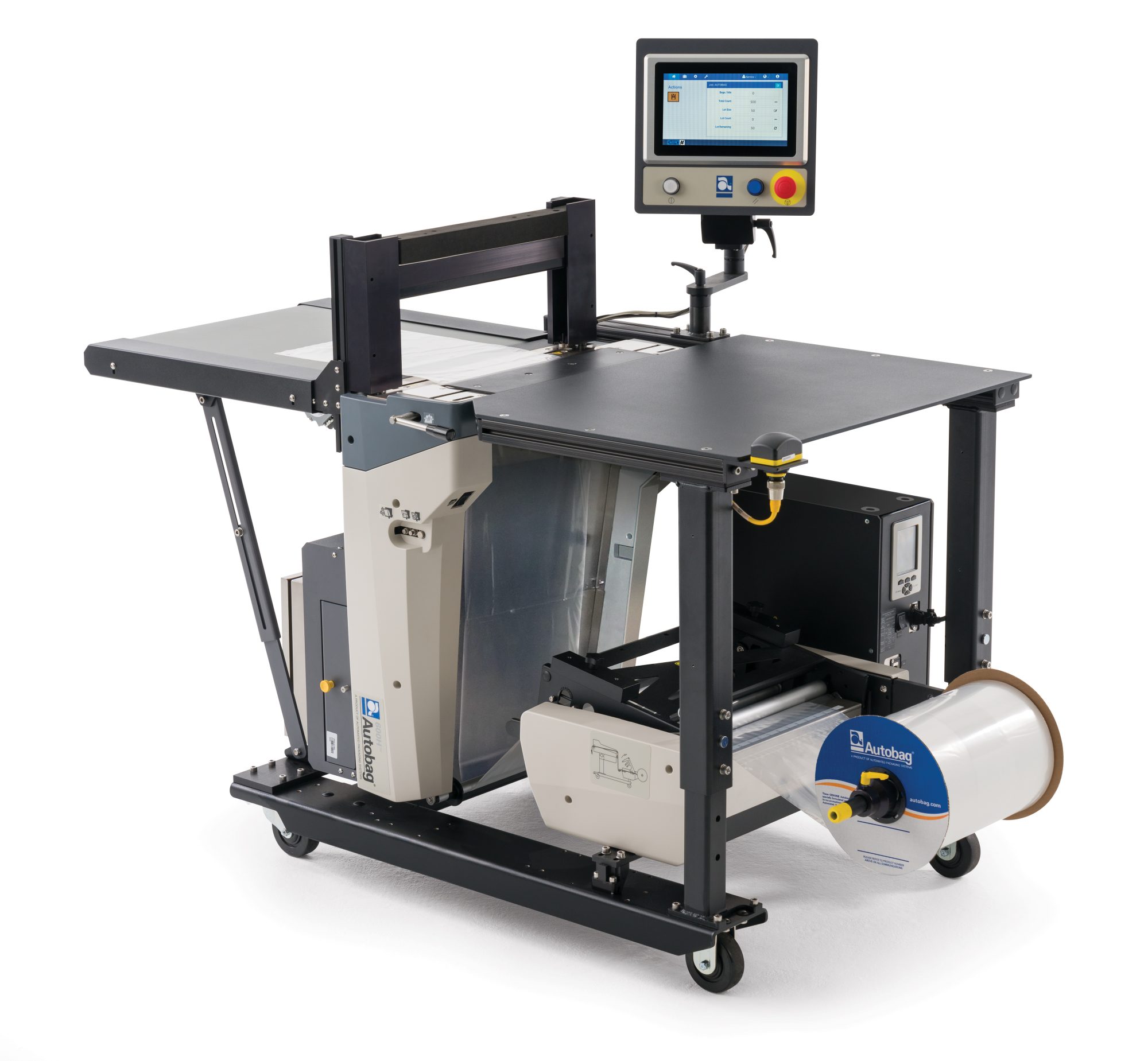

| The AUTOBAG® Brand 600H Horizontal High-Speed Bagging System is an automatic filling and sealing machine capable of running 16″ wide bags, with a large load area for order prep and bulk product queuing, and a compact design that minimizes floor space. Configuration operating at speeds up to 65 bags per minute (BPM). These high-speed bagging system is ideal for large packaging operations. The AUTOBAG® 600H is a horizontal bagging system with a large loading area for order prep and bulk product queing. Developed for reliability, flexibility and optimizing packaging throughput, this system delivers maximum uptime while lowering total package cost. |
| Specifications |
| Dimensions (W x L x H): 34.4” x 66.6” x 34.2”(load table) / 53.6” (top of HMI) (873.8 mm x 1691.6 mm x 868.7 – 1361.4 mm) |
| Weight: 570 lbs. |
| Speed: Up to 65 BPM |
| Electrical: 110V to 240V VAC, 50/60Hz |
| Power Consumption: 650 Watts (VA) max |
| Air Feed: 5 CFM/80 psi of clean, dry air |
| Connectivity: N/A |
| Bag sizes (W x L): 4″-16″ x 5.5″-36″ (101.6mm – 406.4mm) x (139.7mm – 914.4mm) |
| Bag thickness: 1.09-4.0 mil |
| Pass through: 6” (152.4mm) max |
| Weight capacity: Up to 5lbs. (with load shelf) |
| Printer next out bag: No |
| Features and Benefits |
| 24″ conveyor boasts a generous open-space design, enabling unrestricted access and effortless transition onto secondary conveyance systems |
| Simple machine design minimizes operator training requirements – perfect for high-turnover, seasonal labor |
| Inherently safe design provides maximum operator protection |
| Load direction configureable for left- or right- hand operation |
| Multi-position unwind with tension control simplifies changeover |
| Adjustable pass-through up to 6″ for maximum flexibility and packaging efficiency |
| Advanced sealing technology and temperature control ensure consistent, high-quality seals |
| Fewer moving parts reduce ownership cost and improve reliability, while on-board diagnostics and modular components simplify maintenance |
| AutoTouch™ Control Screen accesses, help system, on-board diagnostics, and performance data |
