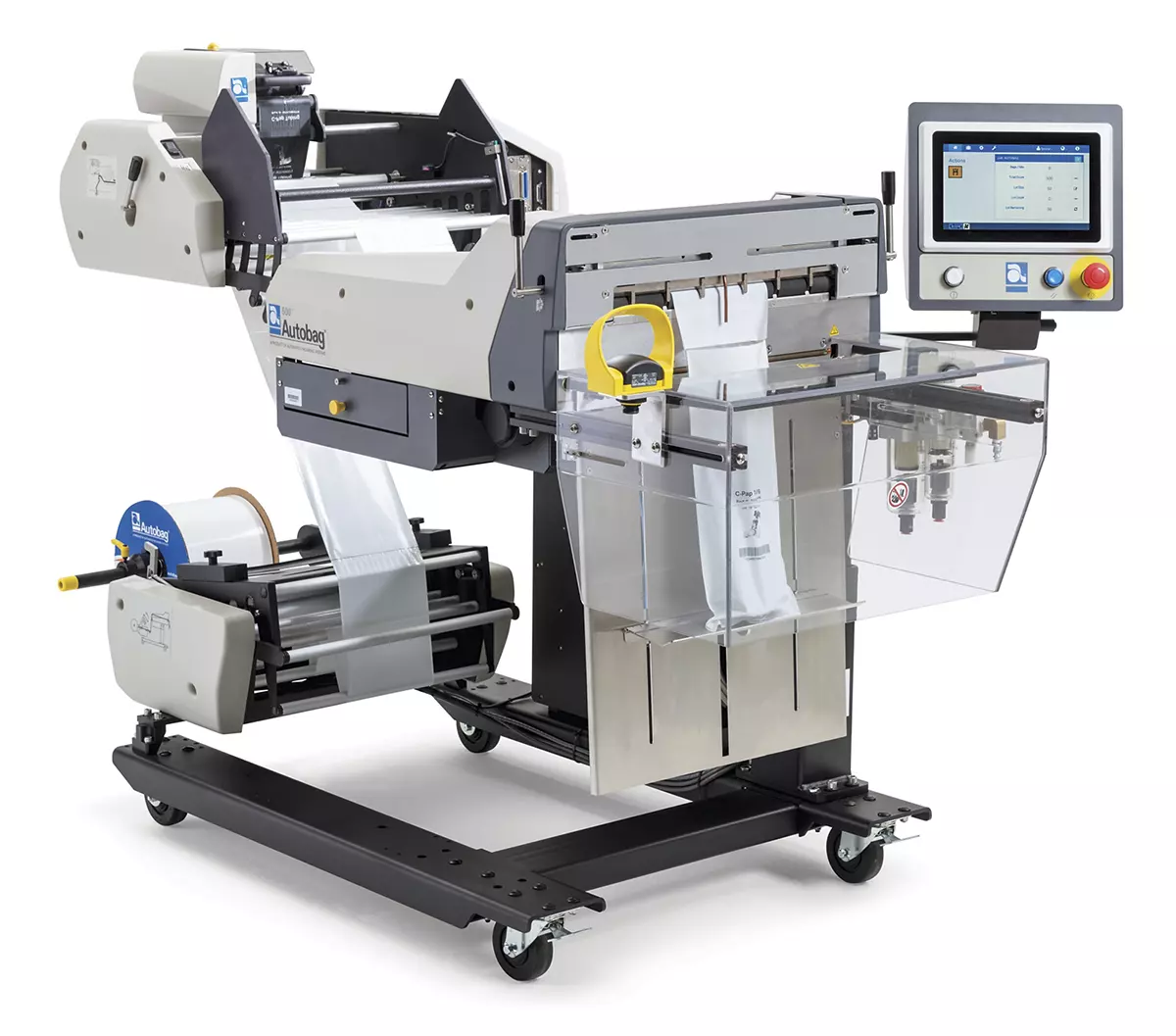

| Configuration operating at speeds up to 65 bags per minute (BPM). This system delivers maximum machine uptime while lowering total cost of ownership. These high-speed bagging system is ideal for large packaging operations. |
| Specifications |
| Dimensions (W x L x H): 46.1″ (Adjustable) x 69.5” x 37.1”-47.1″ (Adjustable) 1170.9 mm x 1765.3 mm x 942.3 – 1196.3 mm) |
| Weight: 410 lbs. |
| Speed: Up to 65 BPM |
| Electrical: 110V to 240V VAC, 50/60Hz |
| Power Consumption: 500 Watts (VA) max |
| Air Feed: 5 CFM/80 psi of clean, dry air |
| Connectivity: N/A |
| Bag sizes (W x L): 4″-16″ x 5.5″-27″ (101.6mm – 406.4mm) x (139.7mm – 685.8mm) |
| Bag thickness: 1.09-4.0 mil |
| Pass through: 6” (152.4mm) max |
| Weight capacity: Up to 5lbs. (with load shelf) |
| Printer next out bag: No |
| Features and Benefits |
| Easily integrates with inline printers, counters, scales, and conveyors for semi- to fully-automatic bagging |
| Multi-position unwind with tension control simplifies changeover |
| 16″ wide bag loading area is ideal for large or bulk products |
| AutoTouch™ Control Screen accesses operator tutorials, help system, on-board diagnostics, and performance monitoring |
| Processor controlled servo motors, ethernet-capable networking, and flexible mechanical design streamline integration |
| Compact footprint minimizes floor space |
| Simple height adjustment and casters for operator comfort and portability |
| A 45 degree tilt option is available for orienting long or delicate products |
| Adjustable pass-through up to 6″ for maximum flexibility and packaging efficiency |
| Newly designed bag sealer area combined with improved temperature control and optional seal-flatteners ensure consistent, high-quality seals |
| We maintain over 100 styles of stock bags and manufacture custom bags that include printing in up to 10 colors and a variety of special features |
| Optional Additions: range of infeed funnels, seal flatteners, raised unwind, SimpleCount™ counting system, product load tray, bags-in-a-box adapter |
