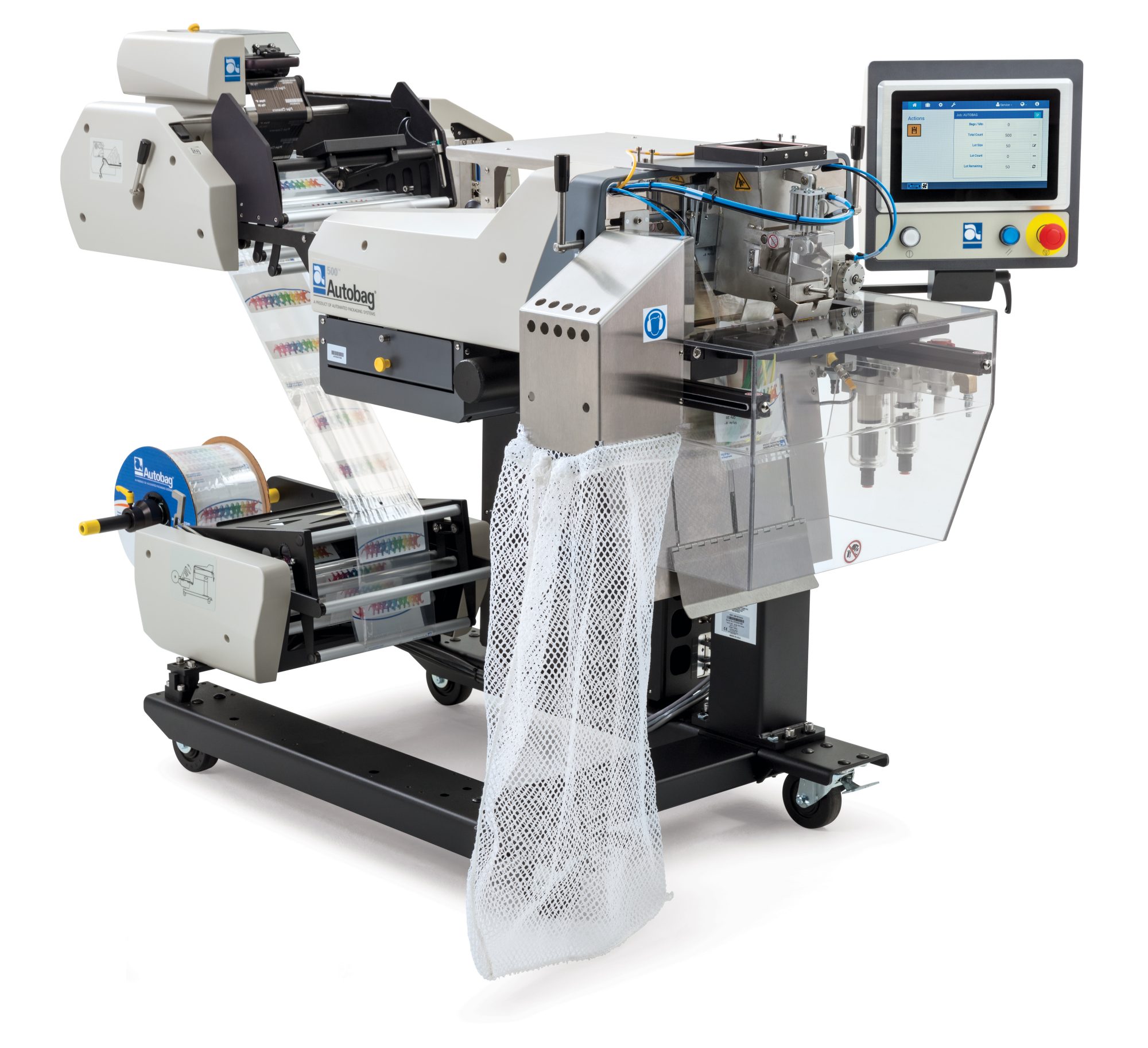

| Configuration operating at speeds up to 100 bags per minute (BPM). This system delivers maximum machine uptime while lowering total cost of ownership. These high-speed bagging system is designed for reliability, flexibility, and optimizing packaging throughput. |
| Specifications |
| Dimensions (W x L x H): 37.6″ (Adjustable) x 64.5″ x 37.1”-46.9″ (Adjustable) (955.0 mm x 1638.3 mm x 942.3 – 1191.3 mm) |
| Weight: 350 lbs. |
| Speed: Up to 100 BPM |
| Electrical: 110V to 240V VAC, 50/60Hz |
| Power Consumption: 500 Watts (VA) max |
| Air Feed: 5 CFM/80 psi of clean, dry air |
| Connectivity: N/A |
| Bag sizes (W x L): 2″ – 12″ x 2.5″ – 20″ (50.8 mm – 304.8 mm) x (63.5 mm – 508.0 mm) |
| Bag thickness: 1.09-4.0 mil |
| Pass through: 5” (127mm) max |
| Weight capacity: Up to 5lbs. (with load shelf) |
| Printer next out bag: No |
| Features and Benefits |
| Easily integrates with inline printers, counters, scales, and conveyors for semi- to fully-automatic bagging |
| Modular components and dedicated service access simplify maintenance and repairs to maximize uptime |
| Multi-position unwind with tension control simplify changeover |
| AutoTouch™ Control Screen accesses operator tutorials, help system, on-board diagnostics, and performance monitoring |
| More bag size options; from 2″ W x 2.5″ L to 12″ W x 20″ L supported (36″ long unsupported) |
| Processor controlled servo motors, Ethernet-capable networking, and flexible mechanical design streamline integration |
| Compact footprint minimizes floor space |
| Simple height adjustment and casters for operator comfort and portability |
| A 45 degree tilt option is available for orienting long or delicate products |
| Adjustable pass-through up to 5″ for maximum flexibility and packaging efficiency |
| We maintain over 100 styles of stock bags and manufacture custom bags that include printing in up to 10 colors and a variety of special features |
| Newly designed bag sealer area combined with improved temperature control and optional seal-flatteners ensure consistent, high-quality seals |
| Optional Additions: range of infeed funnels, raised unwind, SimpleCount™ counting system, product load tray, bags-in-a-box adapter |
